Belt Drive 45
Part. N° SP021413-1
CAD DOWNLOAD ► 3D STEP | PDF | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Often used for long travel linear positioning | |
| - Often used with slide & motor stationary with rail moving | |
| - Linear scanning & positioning applications | |
| - Speeds up to 3M/S | |
| - Maximum Torque 30 Nm (22 Ft-Lb) | |
| - Pick & place |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - See itemized list for included components | |

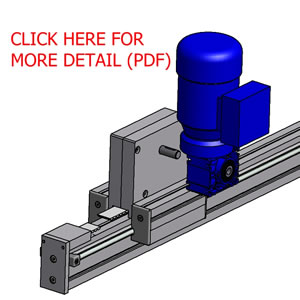

| - Motor & motor mounting sold seperately | |
| - Travel length to 5.6 meters(221") (longer travel possible by joining rails) |
|
- Click here for load capacity Use info for T45 Slide |
|
| - Additional Technical Data |
|
| - Repeatability +/- .25mm(.01") |
| ASSEMBLY |
|---|
| - Unit Ships Fully Assembled |
