PROFILE 32 X 32 UL
Part. N° 20.1064
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS | |
|---|---|
| - Machine Guards | |
| - Enclosures | |
| - Corner Posts | |
| - Trade Show Displays |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 4.100 cm4 |
| - ly = | 4.100 cm4 |
| - wx = | 2.267 cm3 |
| - wy = | 2.267 cm3 |
| - Weight | 1.052 kg/m |
| - For Cut Charge Use Part # 25.1094 | |
| - Full length | 6 m |
| - Packing unit | 48 m |

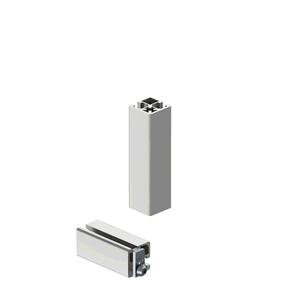

Click here for full size animation
| ASSEMBLY | |
|---|---|
| - MiniTec power-lock fastener | |
| - Angle 19 | |
| - Bolt-fastener 15 | |
| - Screw Connection 32 | |
| - End Cap 32x32 Gray, P/N 22.1002/1 | |
| - End Cap Aluminum, P/N 22.1062/2 |
