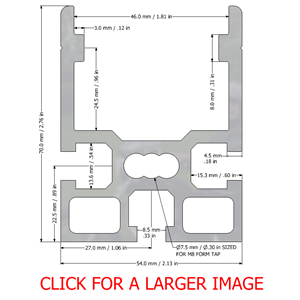

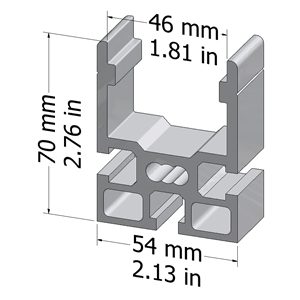

PROFILE HEIGHT ADJUSTMENT
Part. N° 20.1143
CAD DOWNLOAD ► 3D STEP | | Inventor 2018
TECHN. DATA / ITEMS SUPPLIED | |
---|---|
- 6063 aluminum, clear anodized | |
- Order cut precisely to size or in full lengths | |
- CNC machining services available E-mail prints to: sales@minitecframing.com |
|
- lx = | 40.251 cm4 |
- ly = | 39.822 cm4 |
- wx = | 9.624 cm3 |
- wy = | 14.749 cm3 |
- Weight | 2.94 kg/m |
- For Cut Charge Use Part # 25.1095 | |
- Full length | 6 m |
- Packing unit | 24 m |

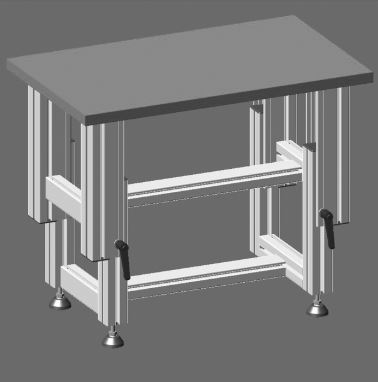

ASSEMBLY |
---|
- MiniTec Power-Lock fastener. Thread hole closest to the t-slot the Power-Lock will be facing |
- Drill hole in height adjustment profile at alignment groove for crank handle or screw. Place square nut in t-slot of 45 series profile |
- Often used with Clamping Lever M8x16, Part # 21.2015 |
- End cap use 22.0979/1 |
