Transport Roller AL
Part. N° 21.1716
| APPLICATIONS |
| - Driven roller conveyors |
| - Manual roller conveyors |
| - Gravity conveyors |
| - Highly customizable conveyor system allows for any roller width and distance between rollers |
| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 2, Bearing Assembly For Transport Rollers, Part # 21.1056 |
| - Tube AL 50x2, Part # 20.1041 |

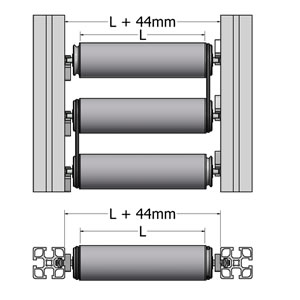

- Please specify dimension L
(Any length between 60 & 1000mm) |
| - Bearing assemblies include snap in clip for mounting to conveyor |
| - Max Load |
- 20 kg (44 lbf) |
| ASSEMBLY |
| - Fasten supplied catch to conveyor rails using supplied M8 screws & nuts |
| - Simply snap roller onto clips |
