Lateral Guide Support 70

Part. N° 29.5025

CAD DOWNLOAD ►  3D STEP | Solidworks 2008 | Inventor 2009

APPLICATIONS
- Adjustable mounting of Lateral Guide, Part # 29.5034
- Recommended distance between supports 500mm

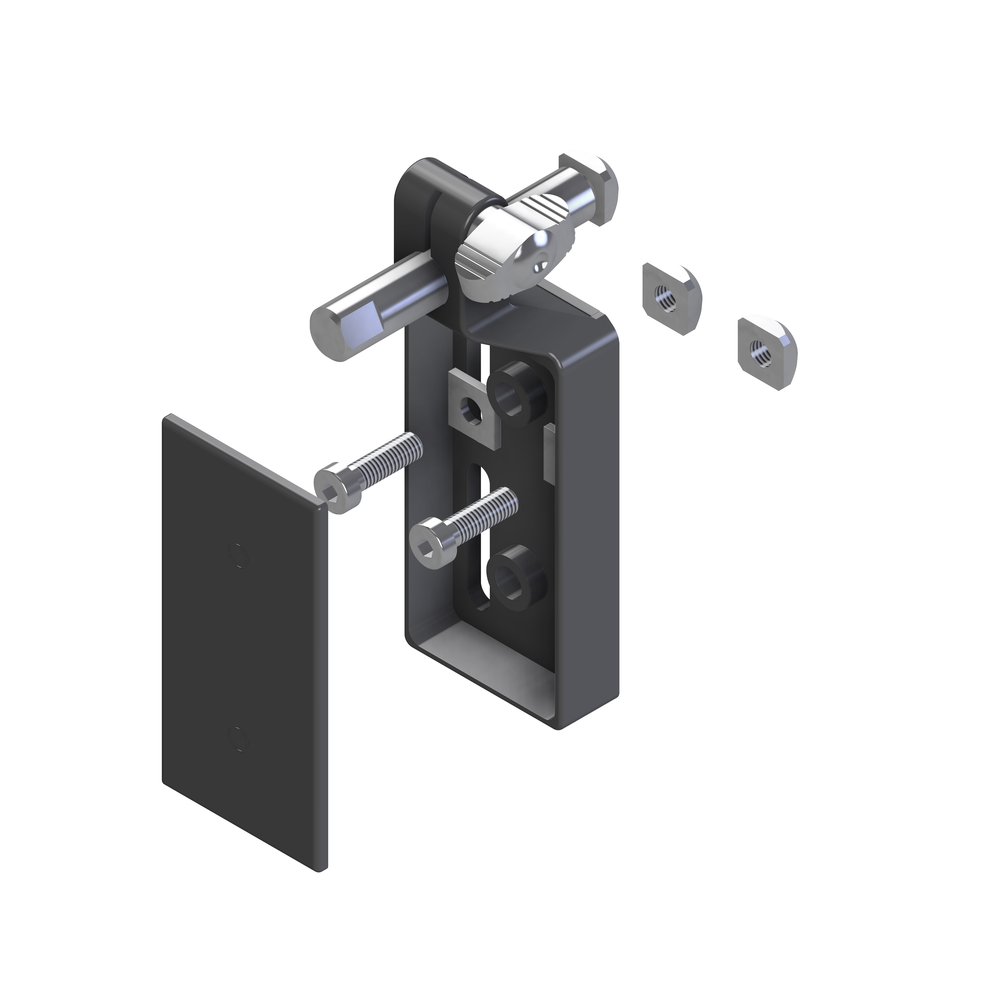

TECHN. DATA / ITEMS SUPPLIED
- PA 6 GF plastic body, gray
- Stainless Ø12mm support shaft, 70mm long
- Qty 1, M8x20 socket head cap screw
- Qty 1, M8 round washer, Ø20mm
- Qty 2, M8 square nuts
- Qty 1, Anti twist device, aluminum
- Qty 1, 45x90 gray end cap
- Qty 1, Shaft locking wing knob
- Weight - .137 kg
ASSEMBLY
- Fasten plastic body to conveyor profile using supplied M8 screw & nut
- Adjust height as required
- Slide Lateral Guide t-slot onto square nuts at end of 12mm shaft
- turn rod to tighten nut, then tighten wing knob to fix shaft
