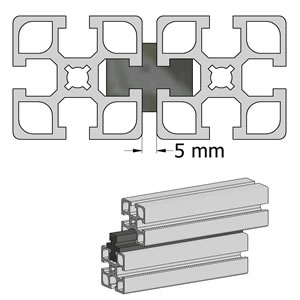

Parallel Slide Bar
Part. N° 22.1041
| APPLICATIONS |
| - Low friction guide for relative motion between two profiles |
| - Guide for sliding doors & drawers |
| TECHN. DATA / ITEMS SUPPLIED |
| - UHMW hard plastic, black |
| - Extremely low friction & wear resistant |
| - Order cut precisely to size +/- .01" |
| - Full Length |
- 2m |
| - Weight |
- .387 kg/m |
| ASSEMBLY |
| - Slide into profile groove |
| - Can be drilled & tapped for set screw to fix in position |
| - Alternatively c'bore for screw & mill clearance for square nut to lock in position |
