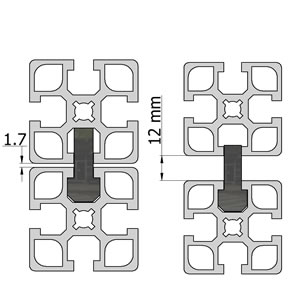

Slide Bar 8N
Part. N° 22.1085
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - Low friction bearing surface |
| - Guiding of sliding doors & drawers |
| - Easy to install lip or tabs |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - UHMW hard plastic, black | |
| - Extremely low friction & wear resistant | |
| - Order cut precisely to size +/- .01" | |
| - Full Length | - 2m |
| - Weight | - .3 kg/m |

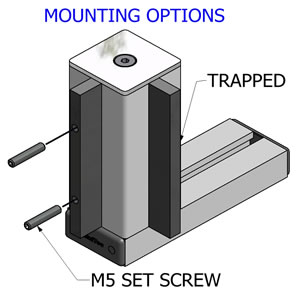

| ASSEMBLY |
|---|
| - Slide into profile groove |
| - Can be drilled & tapped for set screw to fix in position |
| - Alternatively c'bore for screw & mill clearance for square nut to lock in position |
