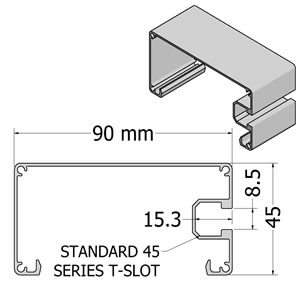

Conduit 90 AL
Part. N° 20.1056
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - Cover for electrical cables & pneumatic holes on profiles 90mm or larger |

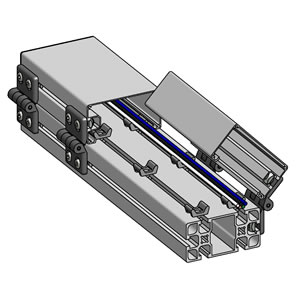

| - Can be swung open using Hinge 45 M6 Part # 21.1175 |
| - Cover for electrical switches, Power Strips etc. |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Aluminum, anodized | |
| - Can be ordered cut to length +/- .010" tolerance | |
| - Full Length | - 6m |
| - Weight | - .970 kg/m |

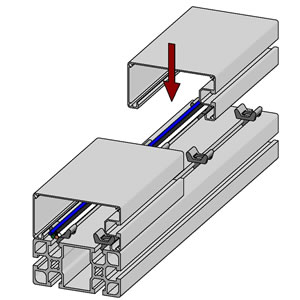

| ASSEMBLY |
|---|
| - Fasten to profile using cable clips part # 22.1204 in both t-slots |
| - End caps Part # 22.1045 |
