Actuating Bow For Security Switch B2
Part. N° 21.1110/2
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - Allows for alignment |

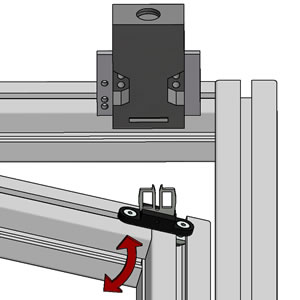

| - For use with doors where mounted less than 500mm from hinge |
| - Use with Security Switch AZ 16 ZVR Part # 21.1110 and Security Switch With Lock Part # 21.1766 |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Swiveling key for smaller radii doors | |

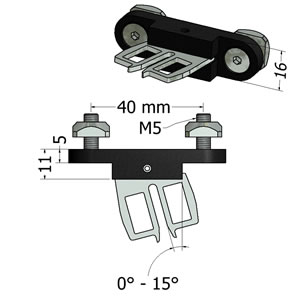

| - Qty 2 M5x18 countersunk screws | |
| - Qty 2 M5 square nuts | |
| - Weight | -.032 kg |
| ASSEMBLY |
|---|
| - No processing required |

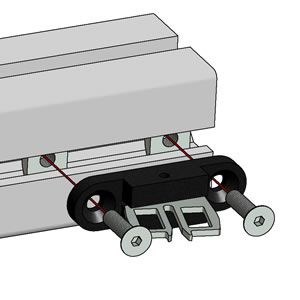

| - Attach to profile t-slots with supplied M5 hardware |
| - For key that pivots in the other direction use Actuating Bow B3 Part # 21.1110/3 |
