21.1766 Security Switch With Lock
Part. N° 21.1766
| APPLICATIONS |
| - Solenoid lock for guarding where machinery remains dangerous for a period of time after the door is opened |
| - Machine guarding, laser enclosures, machine enclosures and wide variety of safety area doors |
| - Swinging or sliding doors |
| TECHN. DATA / ITEMS SUPPLIED |
| - Switch type AZM 161SK-24RK-024 |
| - Housing Thermoplastic, black, self extinguishing |
| - Protective system IP65, nominal operating current 10 A (220V), driving voltage 24V AC/DC, power consumption 10W |
| - Qty 1 Key |
| - Qty 4 M5x16 countersunk screws for mounting key to profile |
| - Qty 4 M5 square nuts with position fixing for mounting key to profile |
| - Qty 3 M5x16 socket head cap screws for mounting switch to adaptor plate or angle bracket for security switch 21.1359 (angle bracket sold separately) |
| - Weight |
- .475 kg |

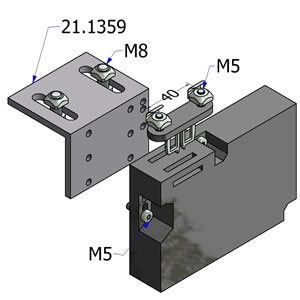

| ASSEMBLY |

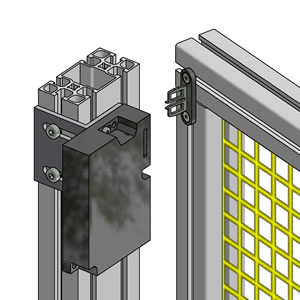

| - Mount key to door horizontal and vertical with supplied M5 hardware |
| - Fasten switch to frame using the angle bracket for security switch 21.1359 (Sold separately) |
| - Use included M5x16 socket head cap screws to attach to above bracket or custom adaptor bracket |
