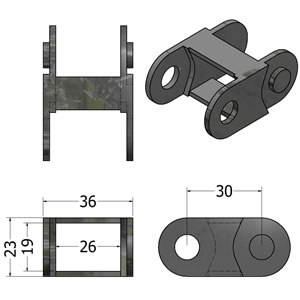

Energy Chain R
Part. N°33.0410
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

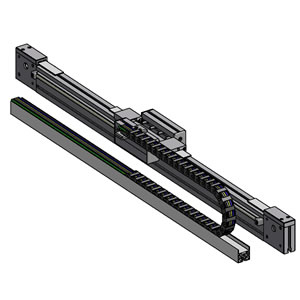

| - Manage cables attached to moving items such as linear slides and gantries |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Plastic, Black | |
| - Mounting brackets to fasten ends sold separately | |
| - Weight | - .341 kg |
| ASSEMBLY |
|---|
| - Mount fixed end of energy chain at the center of travel of slide |

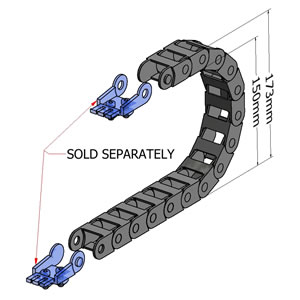

| - Mount fixed end 150mm minimum below moving end |
| - Fasten ends using Mounting Brackets For Energy Chain R Part # 33.0411 (Sold separately) |
