Handle 135
Part. N° 21.2530/7
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
APPLICATIONS |
---|
- Machine guard & enclosure doors |
TECHN. DATA / ITEMS SUPPLIED | |
---|---|
- Handle, gray plastic, PA 6.6 | |
- 2 M8x20 socket head cap screws | |
- 2 M8 square nuts with position fixing | |
- Weight | - .08 kg |
ASSEMBLY |
---|

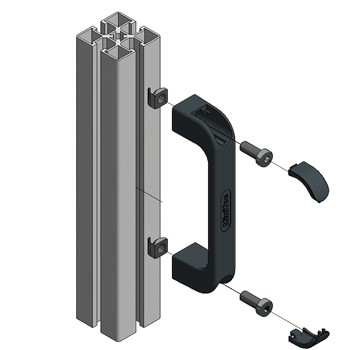

- Mount to t-slots of 45 series profiles with supplied screws & nuts |

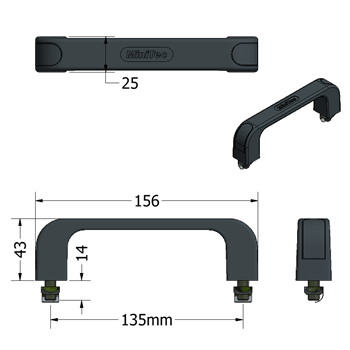

- Drill & tap two M8x1.25 holes on 135mm centers |
