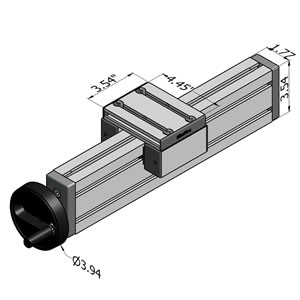

Adjusting Unit VEN 45 X 90 H
Part. N° 28.0185
| APPLICATIONS |
| - General screw driven linear positioning |
| - Over conveyor positioning of reader & print heads |
| - Positioning of sensors |
| TECHN. DATA / ITEMS SUPPLIED |

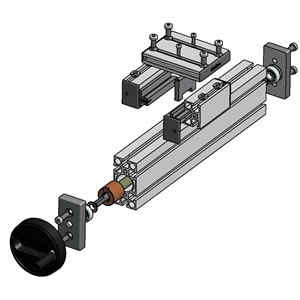

| - Fully assembled lead screw driven linear positioner |

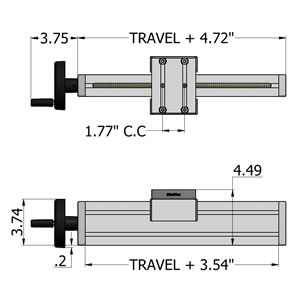

- Standard travel 305mm
other travel lengths available on request |
| - Acme 16x4 screw & bronze nut |
| - Plastic hand crank with fold away handle |
| - Max Load |
- 450 N (101 lbf) |
| - Basic Weight |
- 1.97 kg |
| - Weight/100mm stroke |
- .49 kg |
| ASSEMBLY |
| - Linear positioner ships fully assembled |
| - Order with Slide Clamping Unit Top using Part # 28.0185/1 |
| - Order with Side Clamping Unit using Part # 28.0185/2 |
