Adjusting Unit VEN 90 With Side Lock

Part. N° 28.0186/2

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

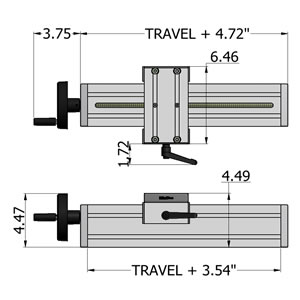

APPLICATIONS
- Unit will not back drive even under full load in vertical orientation
- General screw driven linear positioning
- Over conveyor positioning of reader & print heads
- Positioning of sensors
TECHN. DATA / ITEMS SUPPLIED
- Fully assembled lead screw driven linear positioner
- Standard travel 12" (305mm)
  other travel lengths available on request
- Acme 16x4 screw & bronze nut
- Plastic hand crank with fold away handle
- Side Lock
- Max Load - 450 N (101 lbf)
- Max Travel - 72.25"
- Basic Weight - 3.2 kg (7 lbs)
- Weight/100mm stroke - 1.12 kg (2.47 lbs)
ASSEMBLY
- Linear positioner ships fully assembled
- Click Here To See More Detail On Slide Clamping Unit Top
