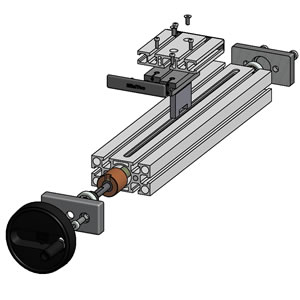

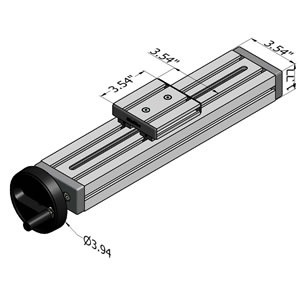

Adjusting Unit VEN 45 X 90 S
Part. N° 28.0187
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - General screw driven linear positioning |
| - Over conveyor positioning of reader & print heads |
| - Positioning of sensors |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Fully assembled lead screw driven linear positioner | |
| - Standard travel 305mm other travel lengths available on request |
|
| - Acme 16x4 screw & bronze nut | |
| - Plastic hand crank with fold away handle | |
| - Max Load | - 450 N (101 lbf) |
| - Basic Weight | - 2.28 kg |
| - Weight/100mm stroke | - .50 kg |
| ASSEMBLY |
|---|
| - Linear positioner ships fully assembled |
| - Order with Slide Clamping Unit Top using Part # 28.0187/1 |
