Slide Roll Element
Part. N° 21.1796
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

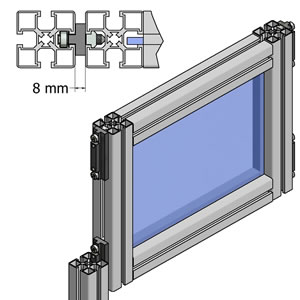

| - Guide for vertical and horizontal sliding doors |
| - 7.5mm gap between door & frame for use with Door Chain Clamping Device 21.1712 |
| - Sliding drawers |

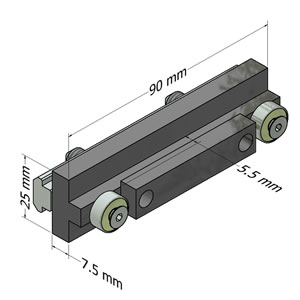

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - UHMW, black | |
| - T-slot bar 90 | |
| - 2 Ball bearings (installed) | |
| - Max. Load | - 200 N |
| - Weight | - .093 kg |

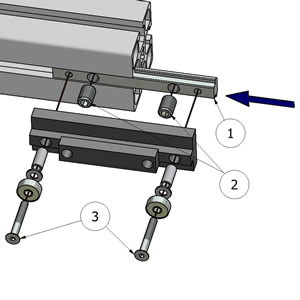

| ASSEMBLY |
|---|
| - Slide T-slot bar into end off door profile |
| - Tighten T-Slot bar set screws thru access holes in hard plastic |
| - Tighten M4 countersunk screws that pass thru bearings |
