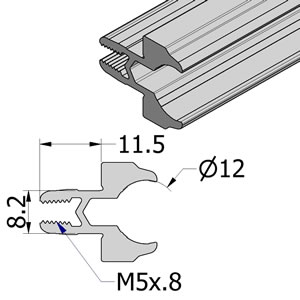

Shaft Supporting Profile
Part. N° 28.0002
| APPLICATIONS |
| - Attachment of Shaft 12 to any t-slot |
| TECHN. DATA / ITEMS SUPPLIED |
| - Aluminum, anodized |
| - Can be ordered cut to size +/- .010" |
| - For cut charge use Part # 25.1093 |
| - Max. Length |
- 6 m |
| - Weight |
- .365 kg/m |
| ASSEMBLY |
| - No processing required. Simply press/tap into profile groove by hand & with plastic mallet |
| - Press/tap shaft 12 into shaft supporting profile by hand & with plastic mallet |
| - Ends can be covered & profile can be secured against movement with Shaft Retention Device |
| - Alternatively profile can be further held in t-slots with M5x10 set screws |
