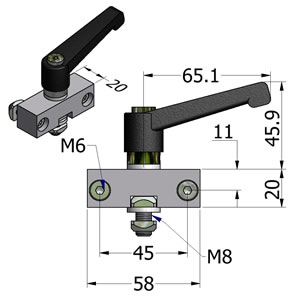

Slide Clamping Unit (Top)
Part. N° 28.0270/9
| APPLICATIONS |
| - Secure clamping of linear slides |
| - For use with manual & screw driven linear positioners |
| TECHN. DATA / ITEMS SUPPLIED |
| - Housing, aluminum, anodized |
| - Ratcheting hand lever, steel |
| - M8 left hand right hand threaded drive stud |
| - Qty 2 M8 square nuts for clamp lock |
| - Qty 3 M8 round washers, plastic |
| - Qty 2 M6x25 socket head cap screws |
| - Qty 2 M6 square nuts |
| -Qty 1 M4x5 set screw |
| - Weight |
- .225 kg |
| ASSEMBLY |

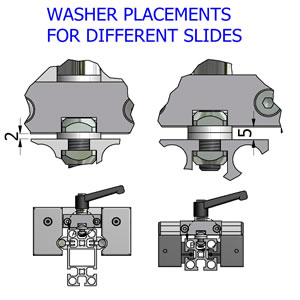

| - Place one washer between M8 nuts for slides with a 2mm gap & two washers for slides with a 5mm gap and 3 for the LWN-S slide with an 8mm gap. Move left over washers to the top of the aluminum body. |
| - Adjust upper & lower M8 nuts on right hand left hand screw to clamp on t-slot lip at the same time |
| - Bolt aluminum body to slide |
| - Adjust handle on right hand left hand stud to remove slop |
| - Tighten M4x5 set screw last |
