Linear Rail LR 6 S

Part. N° 28.0525

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

APPLICATIONS
- Guide rail for linear Slide LR6, Slide LR6 With Cover & Slide LR 6Z With Tensioners
- Linear guide for large sliding doors
- Material handling equipment
- Manual & motorized linear positioning
TECHN. DATA / ITEMS SUPPLIED

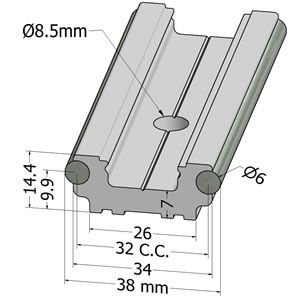

- Aluminum rail, anodized
- 2 steel shafts Ø6mm    Cf 53, 60+/-3 HRC
- Aluminum rail pre-drilled Ø8.5mm on 150mm centers
- For cut charge use Part # 25.1100
- Stainless Version, Part # 28.0526
- Full Length - 6 m (236.22")
- Weight - 1.18 kg/m
ASSEMBLY

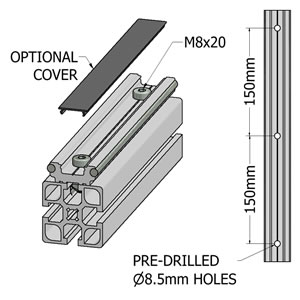

- Fasten to T-slot with M8x20 socket head cap screws  Part # 21.1202 (sold separately)
- Fasten to T-Slots with M8 Square Nuts or M8 Square Nuts With Position Fixing (sold separately)
- Cut to size centering around existing holes
- Drill alignment V groove allows for easy location for additional holes
- Optional plastic cover, part # 22.1160
