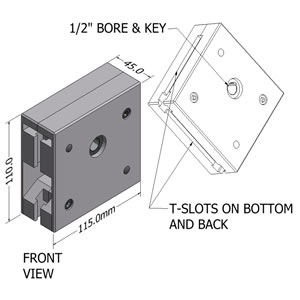

Timing Belt Pulley T45 With 1/2" Bore & Key
Part. N° 28.9084
APPLICATIONS |
- Timing belt reverse unit for LR12 45mm rails & slides |
- Short or long travel linear actuators |
- Medium duty linear motion |
- Use adaptor plate for mounting NEMA 23, NEMA 34 & NEMA 42 motors & gearboxes |
TECHN. DATA / ITEMS SUPPLIED |
- Aluminum housing, clear anodized |
- 32AT10 aluminum pulley, 19 teeth |
- Qty 2, Steel Ball Bearings |
- Zinc plated fastening hardware |

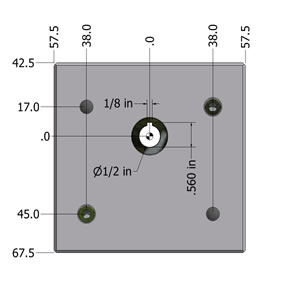

- Bore Dia. |
- 1/2" |
- Keyway: |
- 1/8" |
- Travel (1 Rev) |
- 190 mm |
- Frictional moment at 1/1000 belt tensioning |
- .35 Nm |
- Max load |
- 70 Nm |
- Weight |
- 1.27 Kg. |
