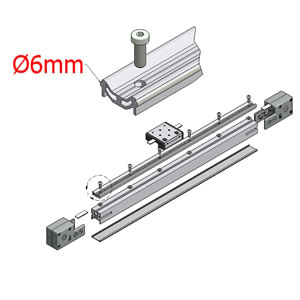

1	28.0500 Module LR 6 Z 45	28.0501 Module LR Module LR 6 Z 90	28.0510 Timing Belt Pulley LR 6	28.0016 Rail LR 6
2	28.0138 Slide LR 6	28.0138/1 Slide LR 6 With Cover	28.0138/2 Slide LR 6 Z	28.0083 Timing Belt Pulley T45
3	28.0083/1 Timing Belt Pulley T45 Z	28.0082 Timing Belt Pulley T90	28.0082/1 Timing Belt Pulley T90 Z	28.0248 Belt Drive 45
4	28.0249 Belt Drive 90	28.0091 Slide LW 45	28.0092 Slide LW 90	28.0084 Slide LW 135
5	28.0087 Slide LW 180	28.0088 Slide LW 32	28.0089 Slide LW 32 E	28.0006 Rail 45
6	28.0007/1 Rail 45x90 F	28.0007/2 Rail 45x90 H	28.0008 Rail 90	28.0011/1 Rail 180 F
7	28.0011/2 Rail 180 H	28.0009 Rail 19	28.0010 Rail 32	28.0012/1 Rail 135 F
8	28.0012/2 Rail 135 H	28.0013/1 Rail 45x180 F	28.0013/2 Rail 45x180 H	28.0270 Slide Clamping Unit Top
9	17.1741 Shaft 12	28.0001 Ball Bearing LR 12	28.0005 Ball Bearing LR 12 L	28.0002 Shaft Supporting Profile
10	28.0052 Shaft Retention Device	28.0021 Fixing Kit LRK	28.0022 Fixing Kit LRE	28.0004/1 End Cap LR Right
11	28.0004/3 End Cap LR Left	28.0049 Cover Profile LR	28.0090 Timing Belt Tensioner	28.0093 Timing Belt 32 AT 10
12	28.0502 Timing Belt 16 AT 5	28.0051 Toothed Rack 8	33.3007 Protective Bellow LR 45	33.3010 Fastening Kit For Protective Bellow LR 45
13	33.3008 Protective Bellow LR 90	33.3011 Fastening Kit For Protective Bellow LR 90	33.3009 Protective Bellow LR 180	33.3012 Fastening Kit For Protective Bellow LR 180
14	28.0112 Adaptor Plate	17.1706 Connecting Shaft 45	17.1706/1 Connecting Shaft 90	28.0180 Coupling 20
15	28.0054 Fastening Kit For Timing Belt Tensioning Device 45	28.0055 Fastening Kit For Timing Belt Tensioning Device 45x90 F	28.0056 Fastening Kit For Timing Belt Tensioning Device 45x90 H	28.0057 Fastening Kit For Timing Belt Tensioning Device 90
16	28.0810 Slide LR16 - 45	28.0811 Slide LR 16 - 90	28.0820 Rail LR 16 45x90 H	28.0822 Rail LR 16 90x180 H
17	28.0821 Rail LR 16 90	17.1743 Shaft 16	28.0019 Shaft Supporting Profile LR 16	50.1726 Ball Bearing LR 16
18	28.0814 Bolt Concentric LR 16	28.0813 Eccentric Bush LR 16	28.0815 End Cap LR 16	28.0808 Shaft Retention Device LR 16 Right
19	28.0809 Shaft Retention Device LR 16 Left	28.0270 Slide Clamp Unit (Top)
