1/4" Aluminum Jig Plate
Part. N° 21.9525/2
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - Particularly useful when surface must be very flat. 1/4" jig plate is flat within .015" over 8 feet |

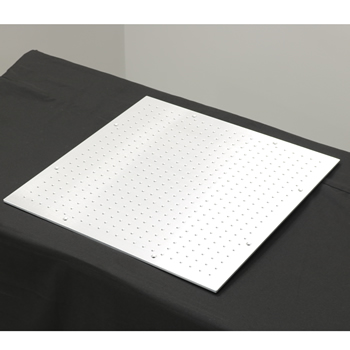

| - Optical breadboards |
| - Flat work sufurfaces |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

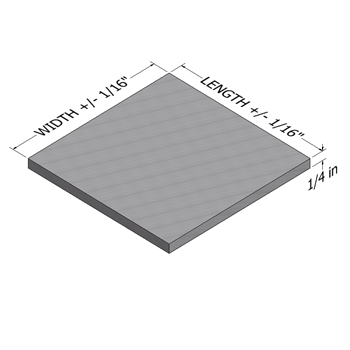

| Cast Aluminum Jig Plate 1/4" thick | |
| - Precision Machined Surface | |
| - Order cut to size +/- 1/16" | |
| - For cut charge use Part # 25.1098 | |
| - CNC machining available (e-mail prints to sales@minitecframing.com) |
|
Click here for spec sheet  |
|
| - Max. Size | - 4' x 8' |
| - Weight | - 3.525 lbs/sqft |

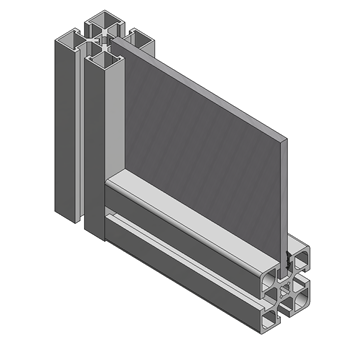

| ASSEMBLY |
|---|
| - Frame in t-slots on all four sides & take up gap using Insert Seal 6.5 |
| - Fasten in t-slots with Distance Profile 22.1039 |
| - Bolt to t-slots using M6x20 C' Sunk screws & M6 Square Nuts With Position Fixing |
