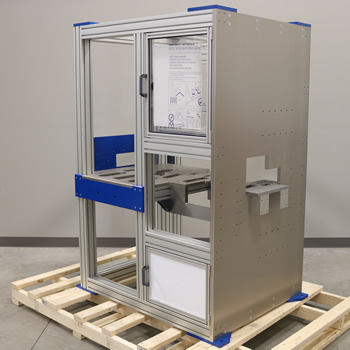

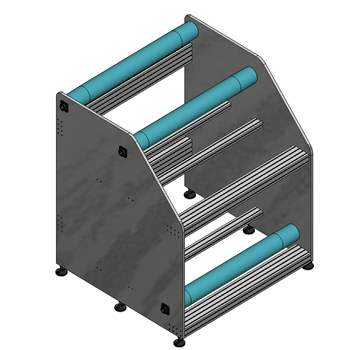

1" Aluminum Jig Plate
Part. N° 21.9531/2
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - Particularly useful when surface must be very flat. 1" jig plate is flat within .005" over 8 feet |
| - Optical breadboards |
| - Flat work sufurfaces |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| Cast Aluminum Jig Plate 1" thick | |
| - Precision Machined Surface | |

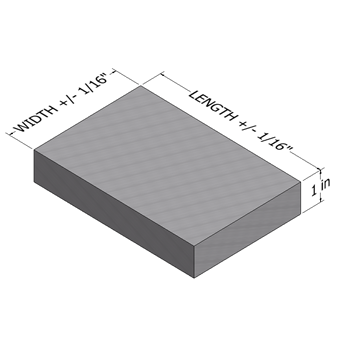

| - Order cut to size +/- 1/16" | |
| - For cut charge use Part # 25.1098 | |
| - CNC machining available (e-mail prints to sales@minitecframing.com) |
|
Click here for spec sheet  |
|
| - Max. Size | - 4' x 8' |
| - Weight | - 14.52 lbs/sqft |
| ASSEMBLY |
|---|
| - To thick to fit in t-slots |
| - Bolt to t-slots using M8x35 C' Sunk screws & M8 Square Nuts With Position Fixing |
