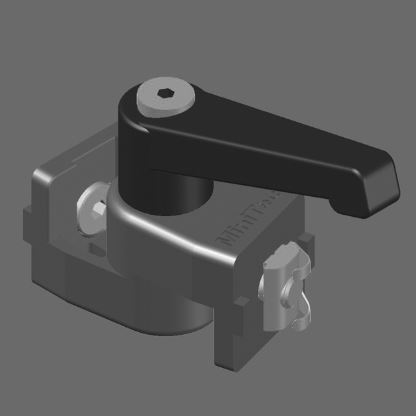

Swivel Link 30 S Fixable
Part. N° 21.2225
| APPLICATIONS |

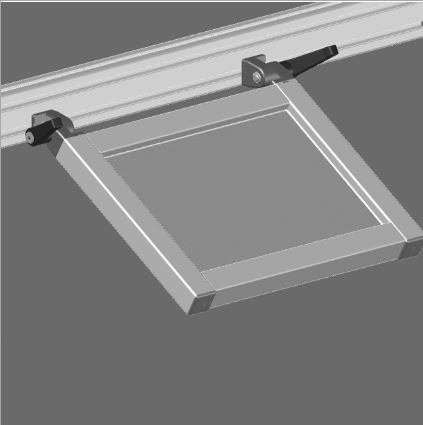

| - For use as a hinge |
| - For use with 30 series profiles |
| - For heavy doors, lids or articulating arms |
| -Clamp creates friction but does not provide a positive lock |
| - Mount to profile end or t-slot |
| TECHN. DATA / ITEMS SUPPLIED |
| - Cast aluminum, powder coated gray |
| - Qty 1 Steel Ratchet Handle |
| - Qty 1 M8 Hex Nut |
| - Qty 2 M8x10 SS Extra Low Head Cap Screw |
| -Qty 1 Bushing |
| - Qty 2 M8 Nut 30 With Pos. Fxg. |
| - Weight |
- .176kg |
| ASSEMBLY |

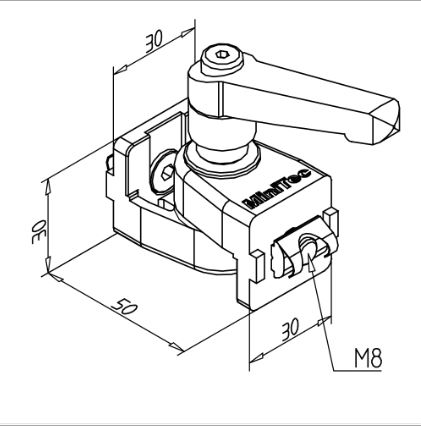

| - Mount to 30 series t-slot or remove nut & mount to M8 threaded hole in profile end. |
