PROFILE 90x90x45
Part. N° 20.0984
CAD DOWNLOAD ► 3D STEP | | Inventor 2018
| APPLICATIONS |
|---|
| - Internal T-slots for enclosures with internal structure for equipment support, shelves 19" racks, drawers, etc. are needed |
| - Use with shaft support profile & shaft to make rails for use with linear slides LR 12 to make sliding doors |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 127.588 cm4 |
| - ly = | 127.459 cm4 |
| - wx = | 24.971 cm3 |
| - wy = | 24.895 cm3 |
| - Weight | 4.458 kg/m |
| - For Cut Charge Use Part # 25.1096 | |
| - Full length | 6 m |
| - Packing unit | 12 m |
| ASSEMBLY | |
|---|---|

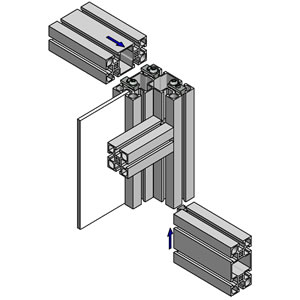

| - MiniTec power-lock fastener | |
| - Angle 90 GD | |
| - Three center holes ready to thread M8x1.25 with a forming tap | |
| - Screw Connection | |
| - Qty 1 End Cap 45x90 - Qty 1 End Cap 45x45 |
