PROFILE 45 X 19
Part. N° 20.0993
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2009
| APPLICATIONS | |
|---|---|
| - Light constructions | |
| - Light Sliding Doors | |
| - Fixturing | |
| - T-Slotted Tables |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 6.045 cm4 |
| - ly = | 1.529 cm4 |
| - wx = | 2.687 cm3 |
| - wy = | 1.494 cm3 |
| - Weight | .814 kg/m |
| - For Cut Charge Use Part # 25.1094 | |
| - Full length | 6 m |
| - Packing unit | 72 m |

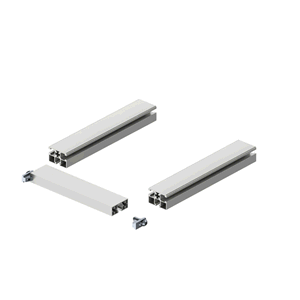

Click Here For Full Size Animation
| ASSEMBLY | |
|---|---|
| - Power-Lock Fastener | |
| - Angle 45 | |
| - Bolt Fastener 20 | |
| - Angle 45x90 | |
| - T-Slot Bar | |
| - End Cap 45x19 Gray, P/N 22.1136/1 |
