PROFILE 19 X 32
Part. N° 20.1000
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS | |
|---|---|
| - Light Constructions | |
| - Window/Panel Frames | |
| - Hand Rails | |
| - Handles |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 3.102 cm4 |
| - ly = | 1.526 cm4 |
| - wx = | 1.651 cm3 |
| - wy = | 1.606 cm3 |
| - Weight | .987 kg/m |
| - For Cut Charge Use Part # 25.1093 | |
| - Full length | 6 m |
| - Packing unit | 60 m |

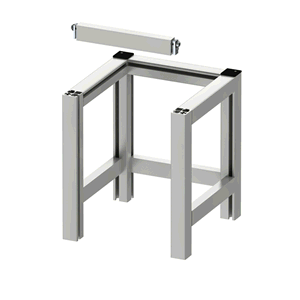

Click here for full size animation
| ASSEMBLY | |
|---|---|
| - MiniTec Power-Lock fastener | |
| - Angle 19 | |
| - Bolt-fastener 15 | |
| - Screw Connection | |
| - End Cap 19x32 Gray Plastic, P/N 22.1220/1 | |
| - End Cap Aluminum, P/N 22.1060/2 |
