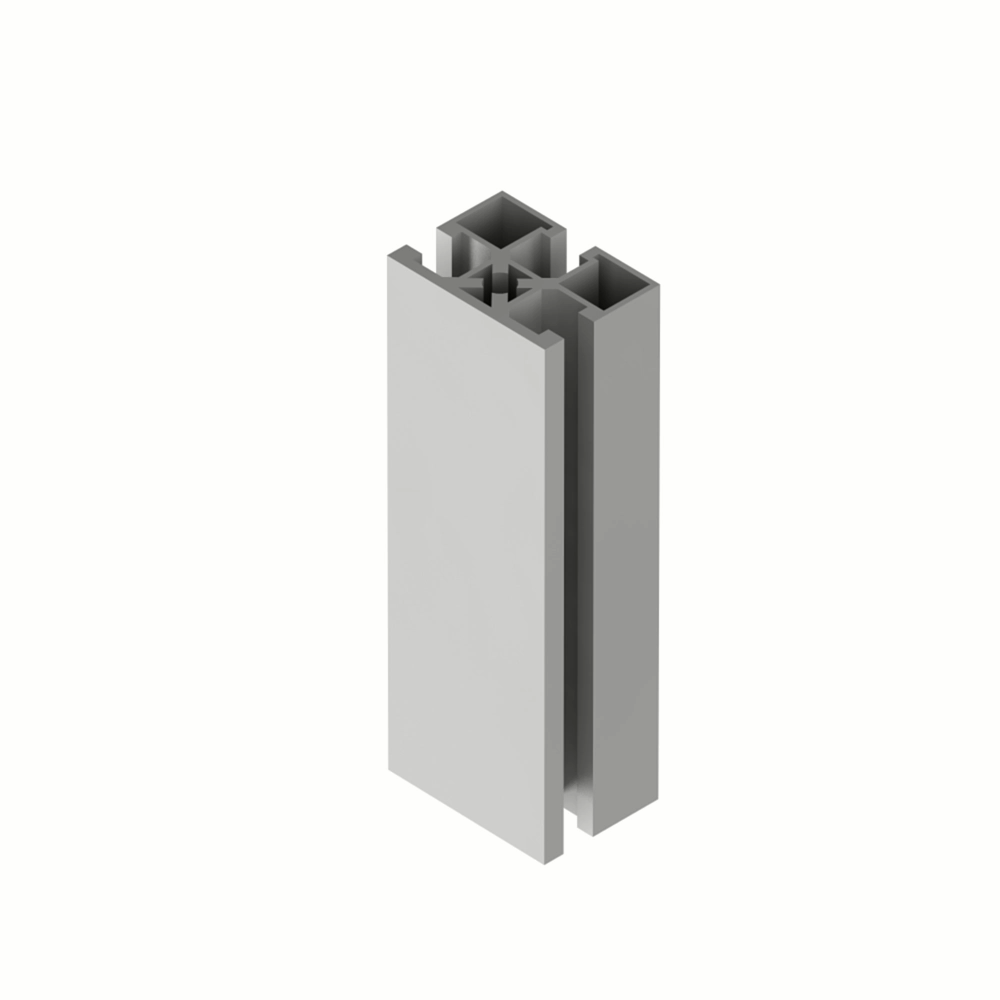

PROFILE 45 X 32 F
Part. N° 20.1055
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS | |
|---|---|
| - Machine Frames, Enclosures & Guards | |
| - Smooth Sided Custom Enclosures | |
| - Swinging & Sliding Doors | |
| - Tables, Shelves, Racks |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 10.189 cm4 |
| - ly = | 6.499 cm4 |
| - wx = | 4.528 cm3 |
| - wy = | 3.762 cm3 |
| - Weight | 1.588 kg/m |
| - For Cut Charge Use Part # 25.1094 | |
| - Full length | 6 m |
| - Packing unit | 48 m |
| ASSEMBLY | |
|---|---|
| - MiniTec power-lock fastener | |
| - Angle 19/25/45/45x90 | |
| - Bolt-fastener 15/20 | |
| - Screw Connection | |
| - End Cap 45x32 Gray, P/N 22.1003/1 | |
| - End Cap 45x32 Aluminum, P/N 22.1065/2 |
