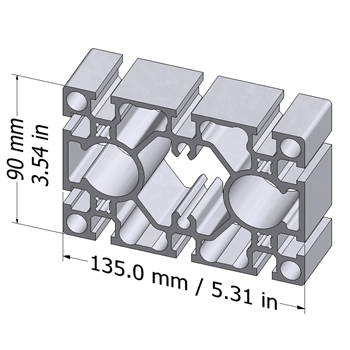

PROFILE 90 X 135
Part. N° 20.1148
CAD DOWNLOAD ► 3D STEP | | Inventor 2018
| APPLICATIONS |
|---|
| - Heavy duty t-slot construction |

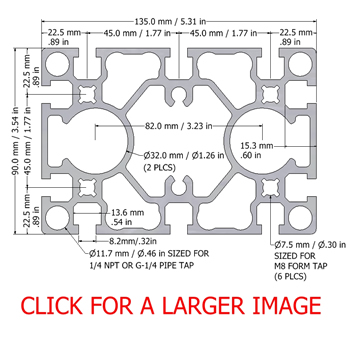

| - Use 32mm center holes to fix LB 20mm ball bushings |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6063 aluminum, clear anodized | |
| - Order cut precisely to size or in full lengths | |
| - CNC machining services available E-mail prints to: sales@minitecframing.com |
|
| - lx = | 286.48 cm4 |
| - ly = | 631.058 cm4 |
| - wx = | 63.662 cm3 |
| - wy = | 93.49 cm3 |
| - Weight | 8.992 kg/m |
| - For Cut Charge Use Part # 25.1096 | |
| - Full length | 6 m |
| - Packing unit | 6 m |
| ASSEMBLY |
|---|
| - MiniTec power-lock fastener |
| - Angle 90 GD |
| - Thread center holes with M8 forming tap 26.1082 |

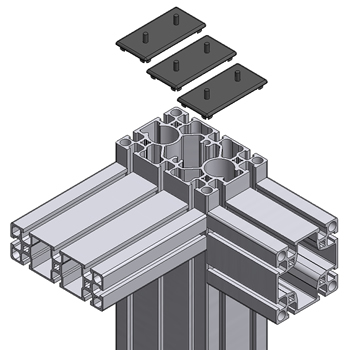

| -To cover end use qty. 3, End Cap 45x90 Gray, P/N 22.1007/1 |
