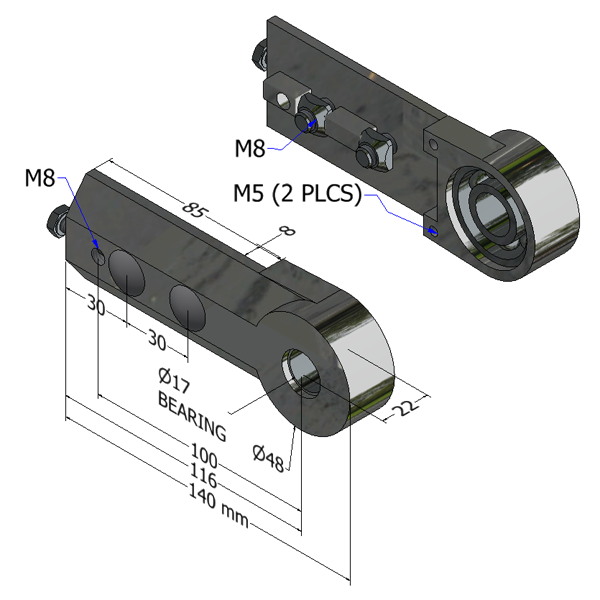

Conveyor Bearing 45 With Bore
Part. N° 21.0993/1
CAD DOWNLOAD ► 3D STEP | | Inventor 2024
| APPLICATIONS |
|---|
| - Conveyor bearing for belt rollers with a Ø 17 mm Axles |

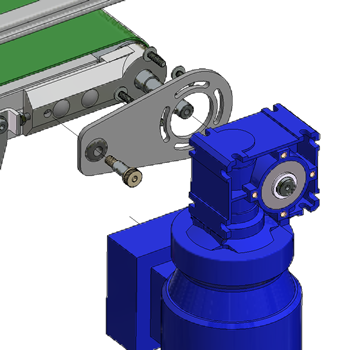

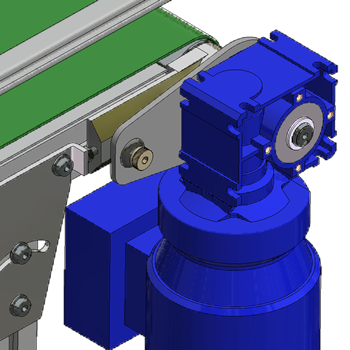

| - For use with Belt Driving Cylinder 45 for motor kit, Part # 29.5022 |
| - For use with Belt Driving Cylinder 45 for plug on motor, Part # 29.5023 |
| - For use with Belt Driving Cylinder 45, Part # 21.0995 |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Cast aluminum, powder coated gray | |
| - Qty 1 Self aligning Ø 17 mm ball bearing sealed on both sides | |
| - Qty 2, M8x16 socket head cap screws | |
| - Qty 2 M8 square nuts | |
| - Qty 1 M6x25 hex head screw | |
| - Qty 2 gray plastic screw cover caps | |
| -M8 X 1.25 thru, threaded hole for use with torque arm. | |
| - Available with stainless bearing and screws, Part # 21.0993/6 | |
| - Weight | - .268 kg |
| ASSEMBLY | |
|---|---|
| - No processing required. Simply bolt to t-slots using supplied M8x16 screws & M8 nuts | |
| - Use Conveyor Bearing 45 , Part # 21.0993, when drive shaft doesn't need to extend thru bearing | |
| - Use tab on Swivel Plate, Part # 29.5001, as backstop for M6 jacking screw | |
| - Alternatively use Multi-Block GD, Part # 21.1355, as backstop for jacking screw | |
| - Recommended locking torque for M8x16 screws is 25 Nm |
