Bearing Assembly For Transport Rollers
Part. N° 21.1056
| APPLICATIONS |
| - Make custom conveyor rollers using Tube AL 50x2 & Tube PVC 50x2 |
| - Make driven conveyor rollers using Driving belt PU & Driving Belt NBR |

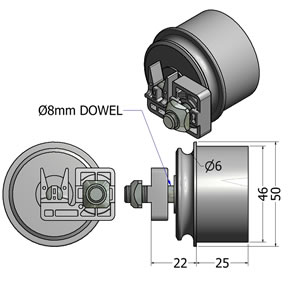

| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 1, PA plastic tube insert |
| - Qty 1, Steel, Ø8mm axle, 38.4mm long |
| - Qty 1, Pulley Carrier 36 (includes mounting hardware) |

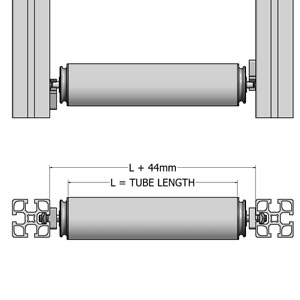

| - For conveyor rollers 60 -1000mm long |
| Load max (roller) |
- 20 kg |
| - Weight |
- .42 kg |

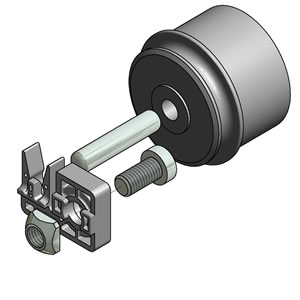

| ASSEMBLY |
| - No processing required. Simply attach Pulley Carrier 36 to conveyor side rails & snap in conveyor roller |
| - Qty 2 Bearing assemblies required per roller |
| - Press Ø46mm tube inserts into both ends of plastic or aluminum tube |
| - Rollers can be snapped in and out for easy replacement |
