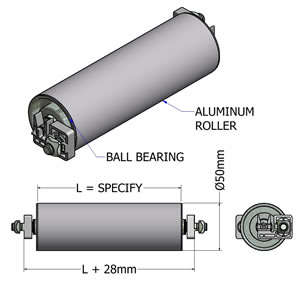

Transport Roller S AL
Part. N° 21.1718
| APPLICATIONS |
| - Manual roller conveyors |
| - Gravity conveyors |
| - Highly customizable conveyor system allows for any roller width and distance between rollers |

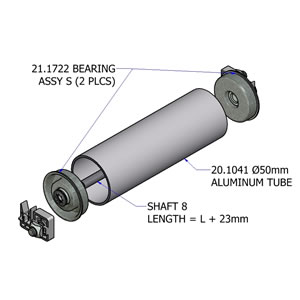

| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 2, Bearing Assembly S, Part # 21.1722 |
| - Tube AL 50x2, Part # 20.1041 |
| - Ø8mm steel axle (Length = L+23mm) |
- Please specify dimension L
(Any length between 60 & 1000mm) |
| - Bearing assemblies include snap in clip for mounting to conveyor |
| - Max Load |
- 32 kg (70 lbf) |

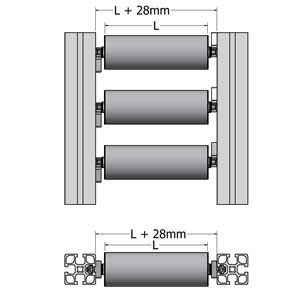

| ASSEMBLY |
| - Fasten supplied catch to conveyor rails using supplied M8 screws & nuts |
| - Simply snap roller onto clips |
