Support Roller Kit
Part. N° 29.5002
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS |
|---|
| - Prevent lower belt sag on conveyors over 10'-12' long |
| - Note heavy belts may need support if more than 6' -8' long |
| - Use only with belts > 115mm |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

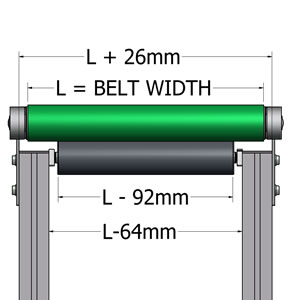

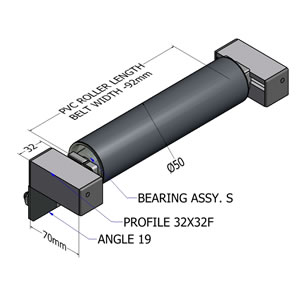

| - Gray PVC roller (Specify Length) | |
| -Qty 2, Ball Bearing Assembly S | |
| - Qty 2 32x32 Profile with end caps | |
| - Qty 2 Angle 19s | |
| - Weight | - .487 kg |
| ASSEMBLY |
|---|
| - Attach to conveyor legs using supplied Angle 19s |
| - Roller assembly is designed to snap in and out of supports |
