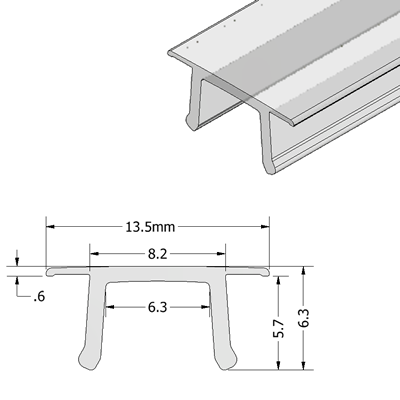

Cover Profile K Transparent
Part. N° 22.1020/3
| APPLICATIONS |
| - Cover & diffraction lens for 8mm wide LED light strips |
| - For use with 30 & 45 series profiles. |
| - Aluminum profile is an excellent heat sink to extend LED life |
| - Cover t-slot over cables, tubing or wires up to Ø11mm (7/16") |
| TECHN. DATA / ITEMS SUPPLIED |
- Translucent polypropylene
Click here for larger photo |
| - Order cut to length +/- .010" |
| - For cut charge use Part # 25.1082 |
| - Length |
- 2m |
td
| - Weight |
- .023 kg/m |
| ASSEMBLY |
| - Press by hand into profile groove |
| - Can be cut with pliers. For best results cut the two ribs that extend into t-slot first. The fold & make a third cut. |
