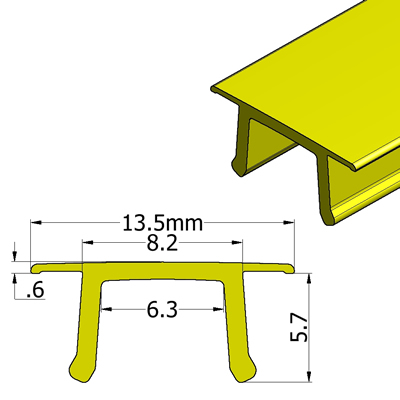

Cover Profile K Yellow
Part. N° 22.1020/4
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - T-slot cover to improve appearance or to make frame easier to clean |
| - Often used to make doors stand out or draw attention to potentially dangerous areas |

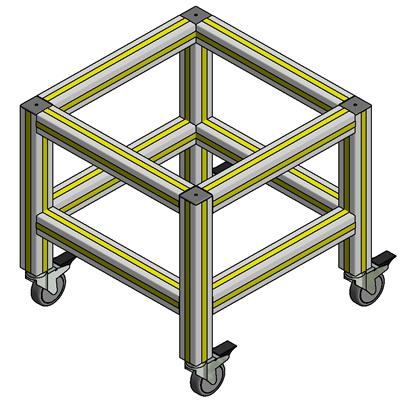

| - Use as trim to add color to an assembly.. |
| - Cover t-slot over cables, tubing or wires up to Ø11mm (7/16") |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - ABS plastic, yellow Click here for larger photo taken in natural sunlight |
|
| - Order cut to length +/- .010" | |
| - For cut charge use Part # 25.1082 | |
| - Length | - 2m |
| - Weight | - .023 kg/m |
| ASSEMBLY |
|---|
| - Press by hand into profile groove |
| - Can be cut with pliers. For best results cut the two ribs that extend into t-slot first. The fold & make a third cut. |
