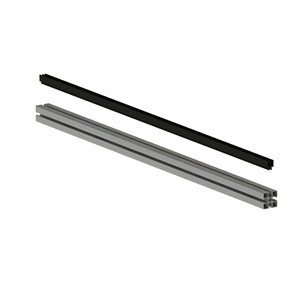

Guide Profile 2 Gray
Part. N° 22.1073/1
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2012
| APPLICATIONS |
|---|
| - Double sliding doors for panels up to 6mm (1/4") thick |
| - Also can be used for lift removable panels |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Rigid PVC, gray | |
| - Available in black Part # 22.1073 | |
| - Order cut exactly to size +/- .010" | |
| - For cut charge use Part # 25.1093 | |
| - Length | - 2m |
| - Weight | - .270 kg/m |
| ASSEMBLY | |
|---|---|
| - Snap into t-slot after assembly of aluminum framing | |
| - For lift removable panels place PVC Bar Part # 22.1077 in lower channel (sold separately) | |
| - Use pvc bar to put panel in after assy. | |
| - Cut panels a minimum of 21mm shorter than opening for lift removable panels and 10mm minimum for non lift removable panels |
