Double Slide Bar
Part. N° 22.1087
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

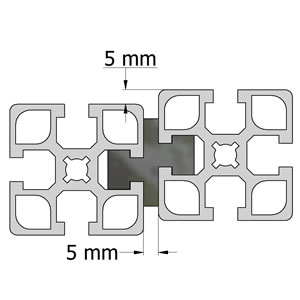

| - Low friction guide for relative motion between two profiles |

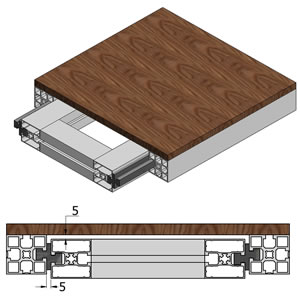

| - Guide for sliding doors & drawers |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - UHMW hard plastic, black | |
| - Extremely low friction & wear resistant | |
| - Order cut precisely to size +/- .010" | |
| - For cut charge use Part # 25.1093 | |
| - Full Length | - 2m |
| - Weight | - .42 kg/m |
| ASSEMBLY |
|---|
| - Slide into profile groove |
| - Can be drilled & tapped for set screw to fix in position |
