EDPM Foam Rubber Gasket 1/8" x 1/2"
Part. N° 22.9221
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - Sealing of doors & removable windows |

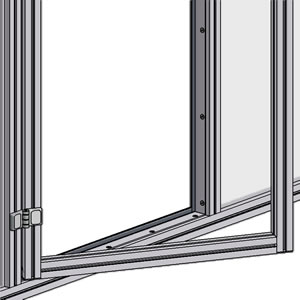

| - Attach to door jamb to prevent transfer of light & air |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Weather resistant EDPM foam rubber | |
| - Acrylic adhesive backing | |
| - Thickness 1/8" | |
| - Width 1/2" | |
| - Fine closed cell structure | |
| - Order whatever roll length you need. (Not sold cut precisely to size) | |
| - Temp. range -40° to +220° F | |
| ASSEMBLY | |
|---|---|
| - Peel of backing to expose adhesive | |
| - Press firmly to aluminum surface | |
| - Often used with 3/4"x3/4 Aluminum Angle, Part # 20.9003 | |
| - Often used with angle 3/4" x 1-1/2", Part # 20.9004 |
