Security Switch AZ 16 ZVRK-M20
Part. N° 21.1110
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - Electrical securing of swinging & sliding doors for machine guards and other safety enclosures |
| - Use 21.1766 where a locking security switch is required |
| - Switch has four contacts |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Security Switch with standard B1 key | |
| - Mounting angle, anodized aluminum | |
| - Qty 2 M5x18 countersunk screws for mounting key | |
| - Qty 2 M5 square nuts for mounting key | |
| - Qty 2 M5x16 socket head cap screws for mounting switch to angle | |
| - Qty 2 M8x16 socket head cap screw for mounting angle to profile | |
| - Qty 2 M8 square nuts for mounting angle to profile | |
- Click here for data sheet  |
|
| - Weight | - .343 kg |
| ASSEMBLY |
|---|
| - No processing required to mount |

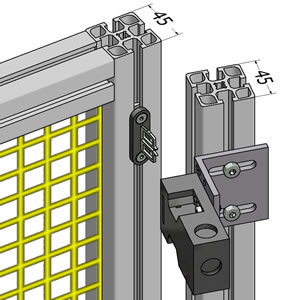

| - Attach angle and key to t-slots with supplied hardware |

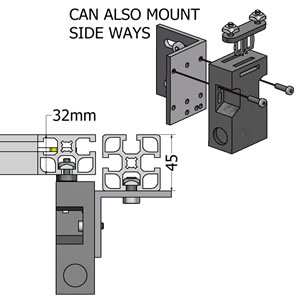

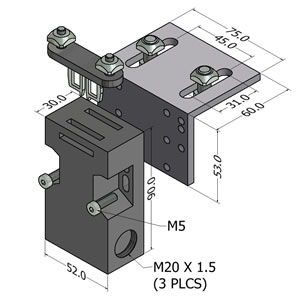

| - Nine tapped holes in mounting angle allow attachment of security switch in multiple ways |
| - For small doors(<500mm) use hinged keys (Sold Separately) 21.1110/2 Actuating Bow B2 21.1110/3 Actuating Bow B3 |
