Angle Bracket For Security Switch
Part. N° 21.1359
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS | |
|---|---|
| - For mounting security switches DIN EN 50041 | |
| - Nine M5 tapped hole pattern suitable for many Schmersal switches | |

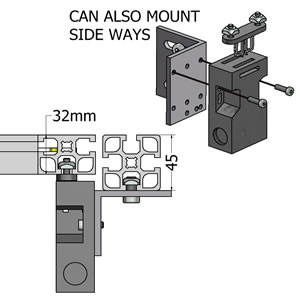

| - Switch can be mounted horizontally or vertically | |
| - Allows adjustment in X,Y & Z directions |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Aluminum angle, anodized | |
| - Qty 2 M8 x 16 socket head cap screws for mounting to profile | |
| - Qty 2 M8 square nuts for mounting to profile | |
| - Weight | - .128 kg |
| ASSEMBLY |
|---|
| - No processing required |
| - Mount angles to t-slots with supplied M8 hardware |
| - Security switches sold separately |
