19" RACK RAIL
Part. N° 21.9420
| APPLICATIONS |
| - 19" Racks |
| - Rack rails can be used with standard 19" rack rail hardware |
| - Rack rails are often mounted on the front & back to support long or heavy hardware |
| - Shelving or 1-1/2" Angle are also often used to support the electronics. |
| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 1 Steel rack rail, painted black |
| - Note: Order two rails to make one 19" rack |

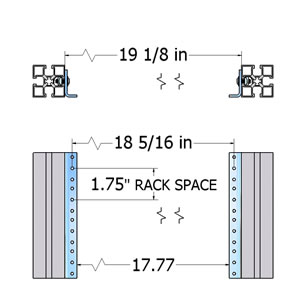

| - Mount between two profiles 19-1/8" apart |
| - One rack space = 1.75" |
- Order cut to size. Specify # of rack spaces required
Click Here for print on how to cut rack rail  |
| - Rack spaces from 1 - 45 available |
| - For cut charge use Part # 25.1100 |
| - Weight |
- .067Lb/in |
| - Full Length |
- 78.75" (45 Rack Spaces) |
