Mounting Brackets For Energy Chain R
Part. N° 33.0411
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - For fastening Energy Chain R Part # 33.0410 |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

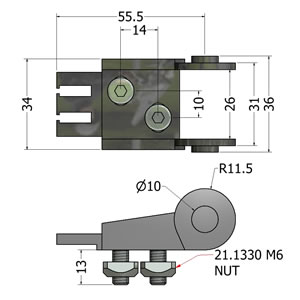

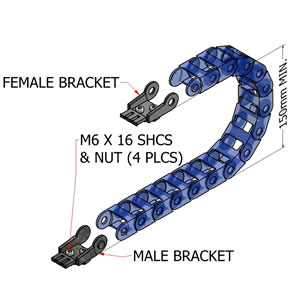

| - 1 Male & 1 Female mounting bracket, black plastic |
|
| - Qty 4 M6x16 socket head cap screws | |
| - Qty 4 M6 square nuts | |
| - Weight | - .058 kg |
| ASSEMBLY |
|---|
| - Snaps into energy chain by hand |

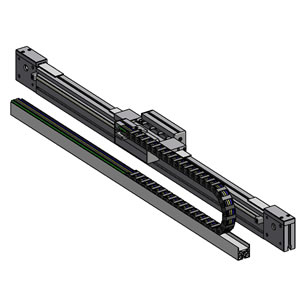

| - Drill & tap M6 x 1 to fasten to lower guide and support Profile 45x45 R 20.1046 |
| - Mount to custom adaptor plate 1/2" thick with two tapped m6 holes. |
