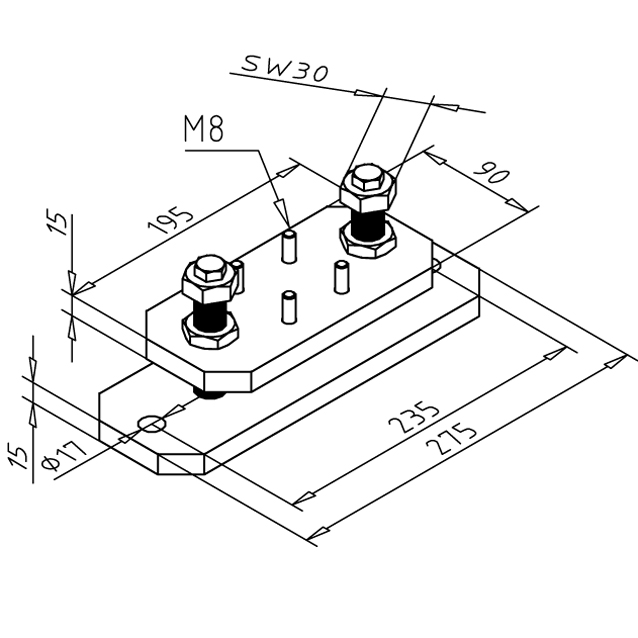

Leveling plate 90 ST
Part. N° 21.0976
| APPLICATIONS |
| - Floor mounting for 90x90 profiles to concrete floor |
| - Typically used on large structures where heavy duty leveling is needed |
| |
| |
| TECHN. DATA / ITEMS SUPPLIED |
| - Upper & lower plates zinc plated steel |
| - Zinc plated leveling screws |
| - Qty 4 M8 SHCS to attach 90x90 profile |
| - Concrete lag bolts sold separately |
| - Weight |
-5.146 kg |

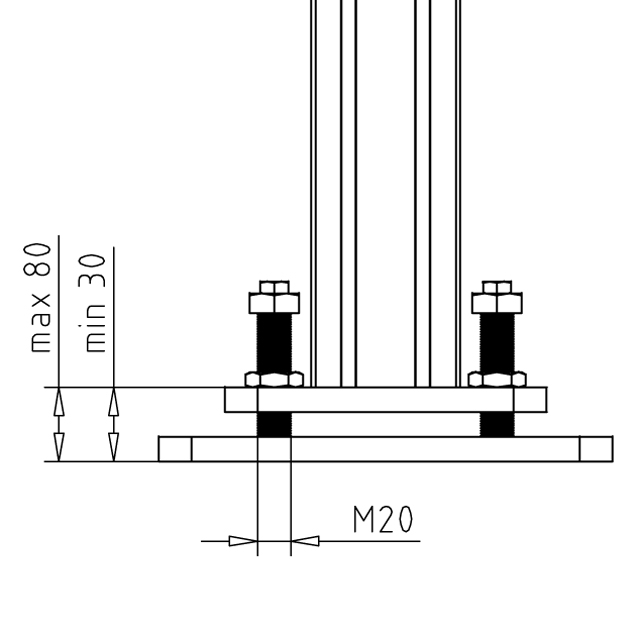

| ASSEMBLY |
| - Mount 90x90 profile to upper plate with included screws |
| - Level plate with 30mm crescent wrench |
| - Once level, tighten jamb nut & upper hex bolt |
