Cantilever Foot 175
Part. N° 21.2191
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2012
| APPLICATIONS |
|---|
| - Mounting of feet or casters to frames |

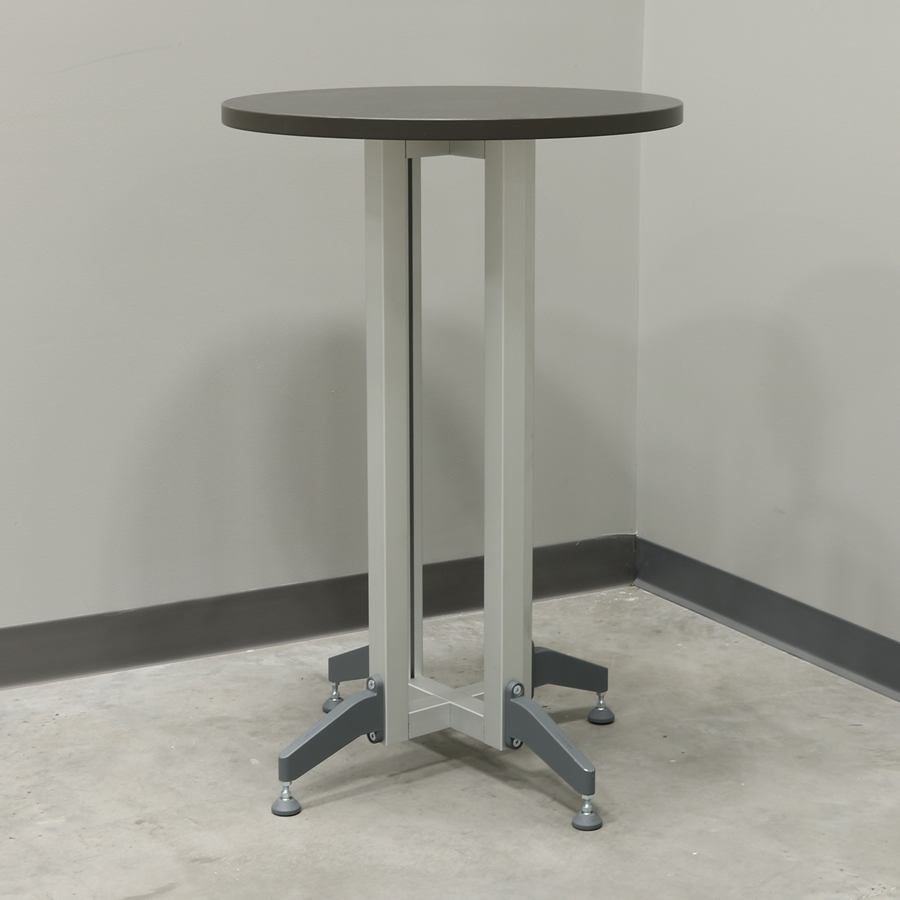

| - Support for display stands & sign boards |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Cast aluminum, powder coated gray | |
| - 2 M8x25 C'sunk Screws | |
| - 2 M8 square nuts with position fixing | |
| - Leveling pads or casters sold separately | |
| - Weight | - .368 kg |
| ASSEMBLY |
|---|
| - No processing required. Simply mount to t-slotted profile with supplied hardware |
