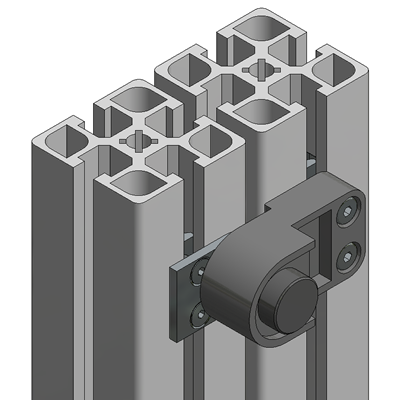

Magnetic Catch S
Part. N° 21.0888
| APPLICATIONS |
| - Stop & catch for swinging doors |

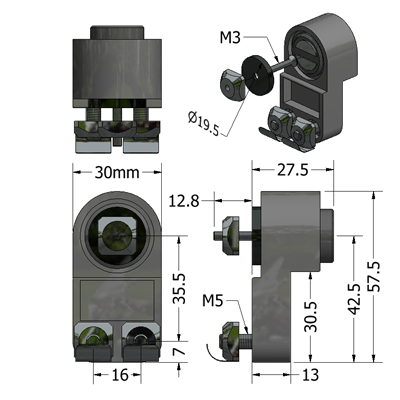

| TECHN. DATA / ITEMS SUPPLIED |
| - Housing plastic PA 6 with integrated magnet |
| - Steel striker plate |
| - 2 M5x20 cap screws |
| - 2 M5 square nuts with position fixing |
| - 1 M3x16 countersunk screw |
| - 1 M3 square nut |
| - Holding force between 50-75N |
| - Weight |
- .080kg |

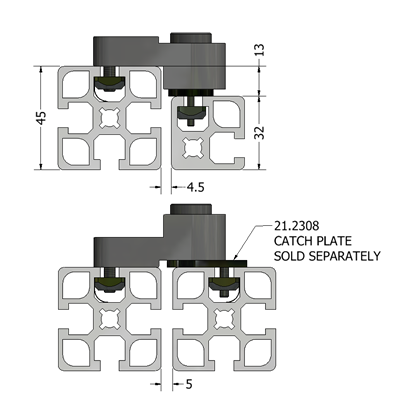

| ASSEMBLY |
| - No processing required when door profile is made from 32x32 profile |
| - Drill & tap door profile M3, for 45x45 doors or substitute supplied strike plate with Magnetic Plate S, Part # 21.2308 |
