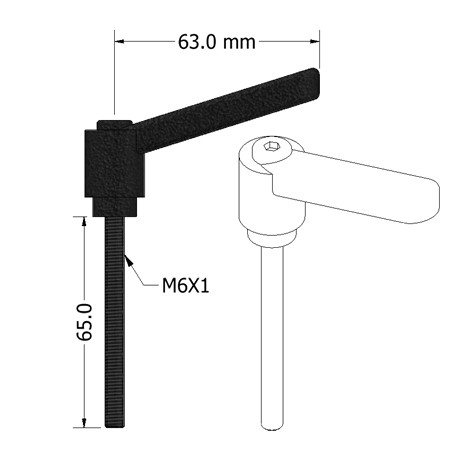

M6x65 Slide LOck
Part. N° 21.1014/1
CAD DOWNLOAD ► 3D STEP | | Inventor 2022
| APPLICATIONS |
|---|
| - Slide Lock |

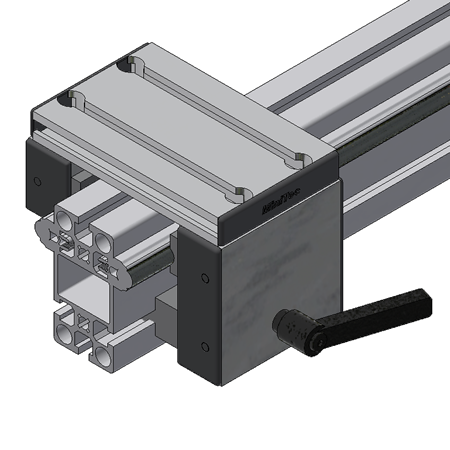

| - Fixing items to the t-slots that need to be moved periodically |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Black powder coated zinc die cast handle with black oxide plated steel stud | |
| - Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage | |

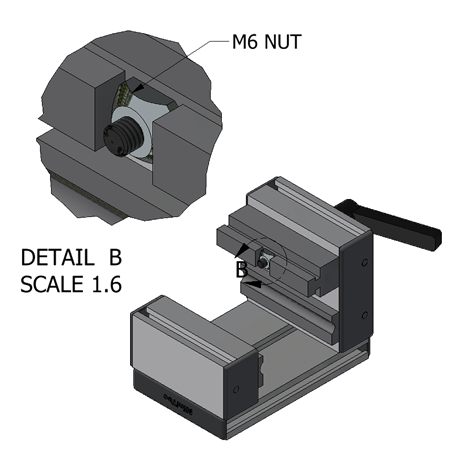

| - M6 nut sold separately | |
| - Weight | - .1kg |
| ASSEMBLY |
|---|
| - Ships fully assembled |
