Swivel Joint 45/15
Part. N° 21.2315
| APPLICATIONS |
| - Rotates through 180° |
| - Heavy hinged doors |
| - Swiveling & rotating lids |
| - Hinge pivots freely on bushings & does not lock |
| TECHN. DATA / ITEMS SUPPLIED |
| - Cast aluminum powder coated gray |

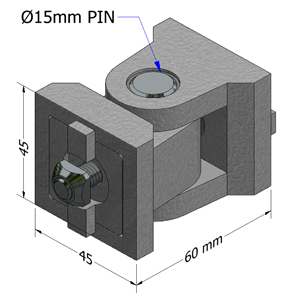

| - Ø15mm Heavy Duty Steel Hinge Pin |
| - Ø15mm Plastic Bushings |
| - Qty 2 M8 Zinc Plated Screws & Position Fixing Nuts for mounting to t-slots or profile ends. |
| - Qty 2, Cast aluminum anti-rotation devices |
| - Weight |
- .315 kg |
| - Load max. |
- 2700 N (607 lbs) |
| ASSEMBLY |
| - No processing required when mounting to t-slots |
| - Drill & tap profile end M8x1.25, 1" deep when mounting to profile end using M8 Form Tap, Part # 26.1082 |

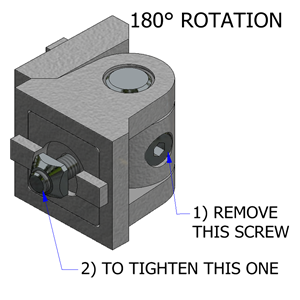

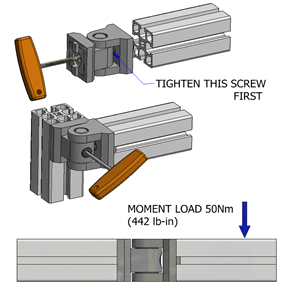

| - To install remove one screw(shown in center pic) & move hinge so it is not rotated (as shown in upper right picture) |
