Detent Pin Adjustment H
Part. N° 29.0851
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS |
|---|
| - Repeatable linear positioning |
| - Particularly useful when you want to return a slide to the same position(s) every time |

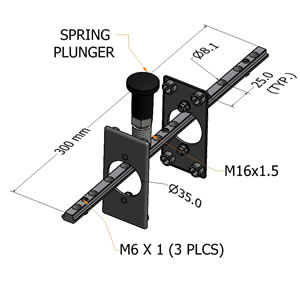

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Qty 1, Steel spring plunger with plastic knob | |
| - Qty 1, 300mm long steel t-slot bar with the hole son 25mm centers | |
| - Qty 2, 45x90 Gray End Caps With Hole | |
| -Qty 3, M6x16 Pointed Set Screws installed on T-Slot Bar | |
| - Profile 45x90S & Handle Profile 32 sold separately | |
| - Weight | - .241 kg |

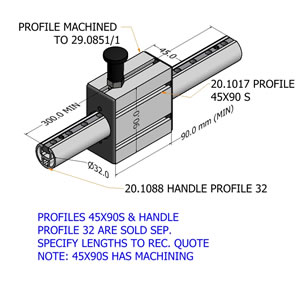

| ASSEMBLY |
|---|
| - Order handle profile 32 to whatever length desired (300mm minimum) |
- Order profile 45x90 S to whatever length desired (90mm minimum). Make sure to specify that this needs to be machined to print 29.0851/1. Click here for print. |
