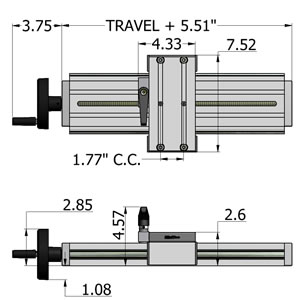

Adjusting Unit VEW 45 X 90 F With Top Lock
Part. N° 28.0181/1
| APPLICATIONS |
| - General screw driven linear positioning |
| -Unit will not back drive even when vertical under full load |
| - Over conveyor positioning of reader & print heads |
| - Positioning of sensors |
| TECHN. DATA / ITEMS SUPPLIED |
| - Fully assembled lead screw driven linear positioner |
| - UHMW bearings Slide Rail LG ride on hardened steel bearing shaft 12 |
- Standard travel 305mm
other travel lengths available on request |
| - Acme 16x4 screw & bronze nut |
| - Plastic hand crank (fold down handle is optional) |
| -28.0270/9 Top Lock |
| - Max Load |
- 450 N (101 lbf) |
| - Max Travel |
- 71.5" |
| - Basic Weight |
- 2.31 kg |
| - Weight/100mm stroke |
- .75 kg |
| ASSEMBLY |
| - Linear positioner ships fully assembled |
| |
