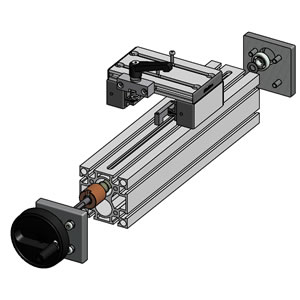

Adjusting Unit VEN 90 With Top Lock
Part. N° 28.0186/1
| APPLICATIONS |
| - Unit will not back drive even under full load in the vertical orientation |
| - General screw driven linear positioning |
| - Over conveyor positioning of reader & print heads |
| - Positioning of sensors |
| TECHN. DATA / ITEMS SUPPLIED |
| - Fully assembled lead screw driven linear positioner |
- Standard travel 12" (305mm)
other travel lengths available on request |
| - Acme 16x4 screw & bronze nut |
| - Plastic hand crank (fold down handle is optional) |
| - 28.0270/9 Top Lock |
| - Max Load |
- 450 N (101 lbf) |
| - Max Travel |
- 71.5" |
| - Basic Weight |
- 3 kg (6.6 lbs) |
| - Weight/100mm (3.93")stroke |
- .1.12 kg (2.47 lbs) |
